Product Introduction

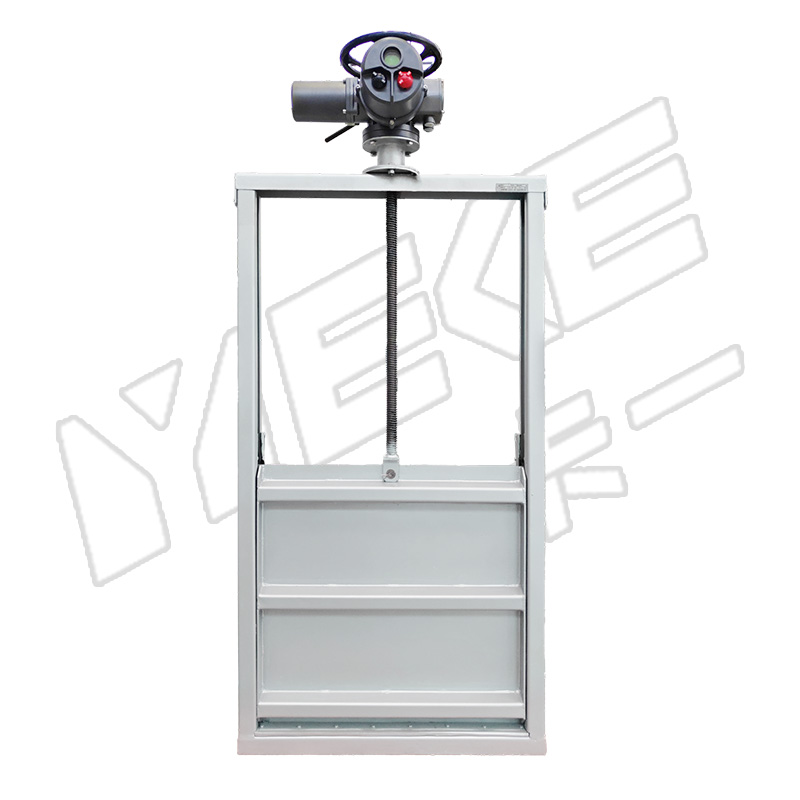

The main body of the channel gate valve is made of metal materials such as stainless steel or carbon steel, and it consists of a frame, gate body, rubber sealing components, and an opening/closing device. The gate body moves up and down along the frame guide rails, driven by the hoist through the...

The main body of the channel gate valve is made of metal materials such as stainless steel or carbon steel, and it consists of a frame, gate body, rubber sealing components, and an opening/closing device. The gate body moves up and down along the frame guide rails, driven by the hoist through the screw rod. When descending, it cuts off the water flow; when ascending, it regulates the flow. It is mainly used for cutting off flow, regulating flow rate, and controlling water level.

This product is a non-standard customized item, with dimensions and pressure ratings based on actual customization requirements.

Key Features
Optimized for Open Channels: Designed specifically for open channels, featuring large openings and wide flow paths to ensure smooth and unobstructed passage.
Robust Structure: Solid overall construction resistant to hydraulic impact and erosion.
Durable Materials: Primarily constructed from cast iron or steel, offering corrosion and abrasion resistance suitable for outdoor conditions.
Excellent Sealing: Superior sealing performance with options for uni-directional or bi-directional water stoppage, ensuring minimal leakage.
Versatile Operation: Moderate stroke length compatible with diverse actuation methods, allowing for convenient operation.
Typical Applications
Agricultural Irrigation: Farm irrigation districts, water diversion channels, and drainage ditches.
Municipal Drainage: Municipal stormwater drains, river tributaries, and interception channels.
Water & WWTP Facilities: Plant-wide open channels and overflow weirs at water treatment and sewage treatment plants.
Advantages
High Flow Capacity: Strong conveyance capability, ideal for large-flow water transfer and drainage in open channels.
Superior Outdoor Adaptability: Excellent resistance to sun exposure and rain, ensuring a long service life.
Easy Installation: Simple integration with civil channel structures, minimizing civil engineering investment.
Multi-functional: Capable of cut-off, water level regulation, and flow control, offering high utility.
Anti-Silting: Resistant to debris accumulation, resulting in simple operation and maintenance.
