Product Introduction

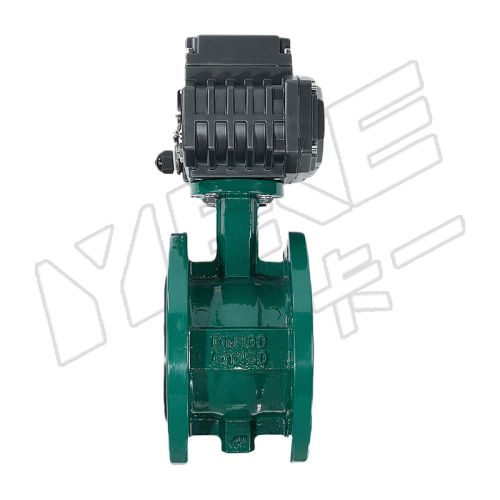

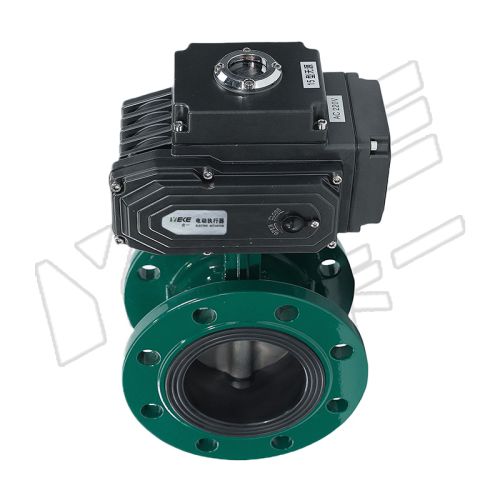

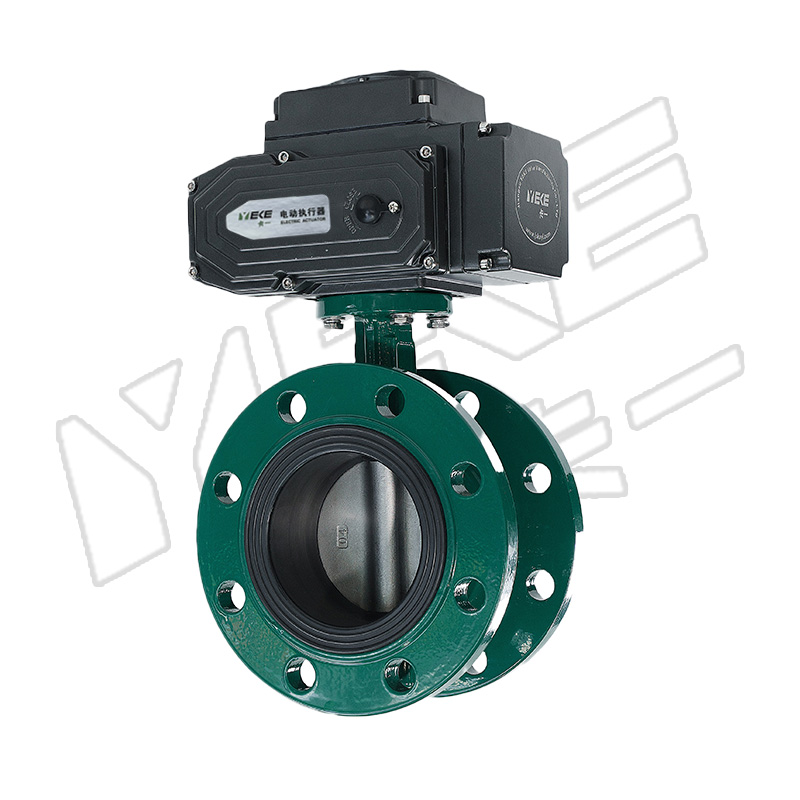

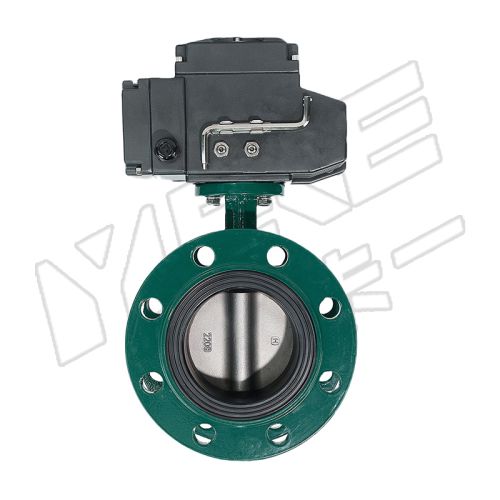

The flanged butterfly valve is a quarter‑turn valve designed for flow regulation and shutoff in pipelines. It features flanges on both ends, allowing direct bolting between pipe flanges, this robust connection makes it an ideal, leak-proof solution for a wide range of industrial a...

The flanged butterfly valve is a quarter‑turn valve designed for flow regulation and shutoff in pipelines. It features flanges on both ends, allowing direct bolting between pipe flanges, this robust connection makes it an ideal, leak-proof solution for a wide range of industrial applications, Offers bubble-tight sealing and long service life.

To meet diverse control needs, YEKE provides you with comprehensive drive options: standard handles for manual operation, turbine heads for large-caliber, labor-saving adjustment, as well as precise electric actuators and efficient pneumatic actuators for automated control.

、Key Features
Standalone Connection
Integral flanges create a strong, bolted joint without additional pipe sleeves.
System Integrity
Perfect for systems requiring frequent valve isolation or high-pressure applications.
Wide Size and Pressure Range

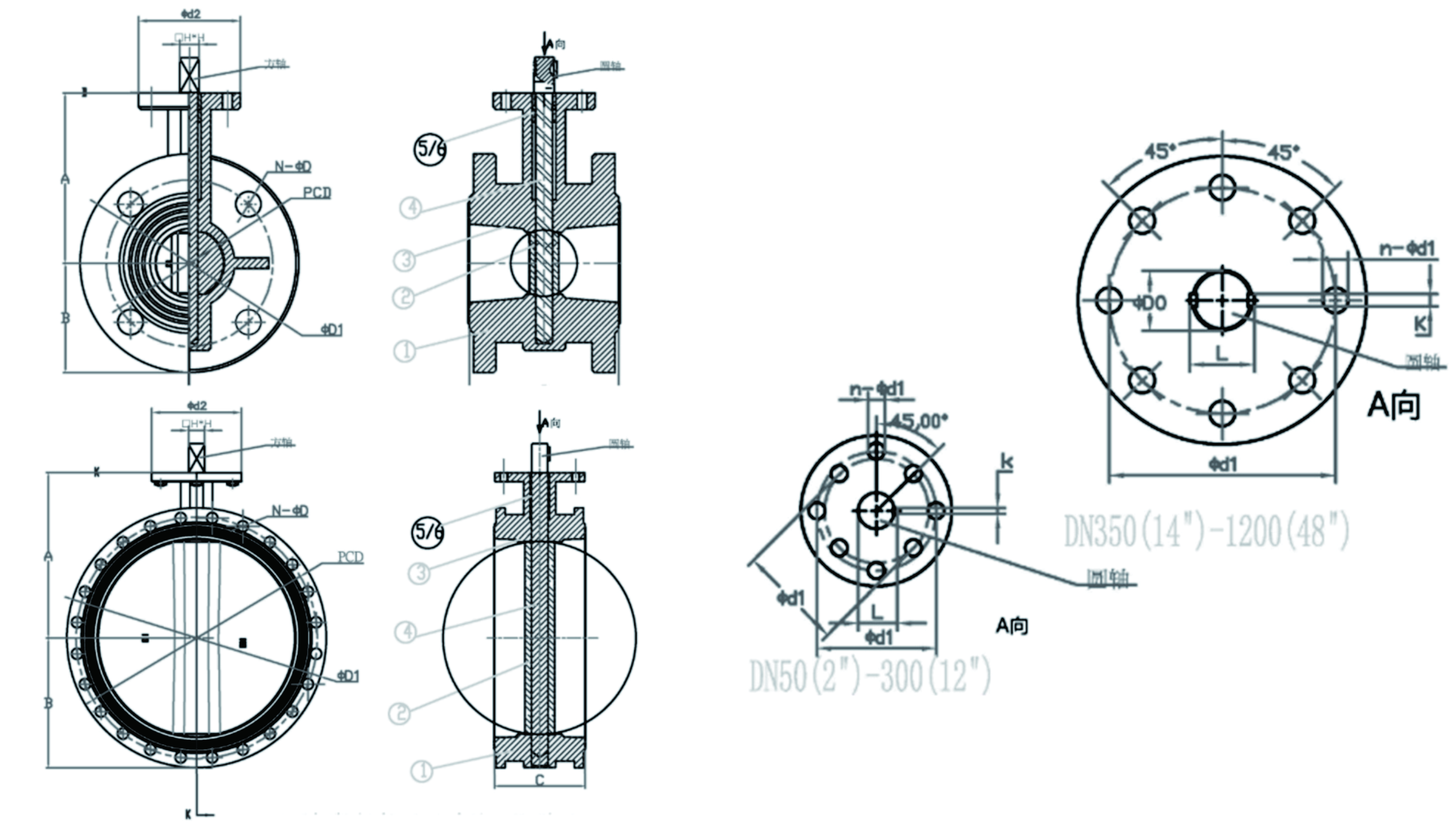

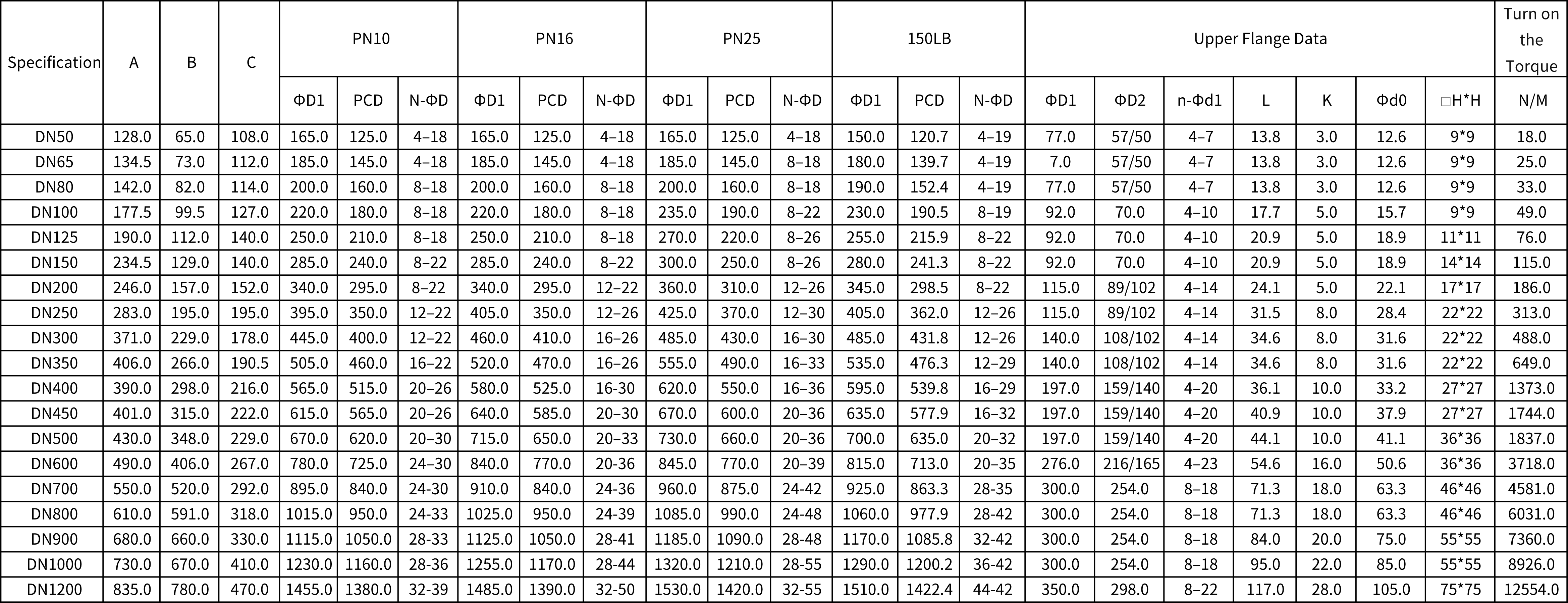

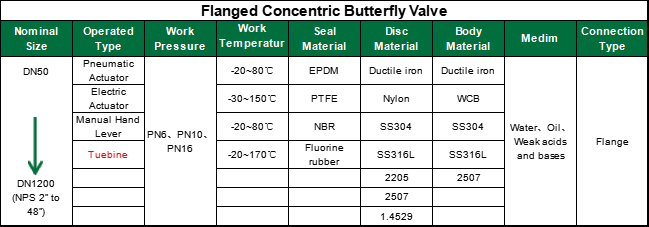

Available in sizes from DN40 to DN1200 and pressure ratings up to PN16, accommodating diverse system requirements.
Broad Media Compatibility
Designed to handle water, oil, and weak acids or bases, making it versatile for different fluids.
Compact and Efficient Design
The mesoid structure allows for efficient flow control with minimal space requirements.

Typical Applications
Water and Wastewater Treatment
Industrial Fluid Systems
Fire Protection Systems
Chemical Processing
Oil, gas, and general industrial automation

Advantages
Cost-Effective Solution
Ease of Installation and Maintenance
Reliable Performance , Versatile Application and Durability
