Product Introduction

The Wafer Concentric Butterfly Valve is a compact, cost-effective solution for reliable flow isolation and control. Designed with a concentric disc and soft seat, it ensures tight sealing, smooth operation, and easy installation across various piping systems....

The Wafer  Concentric Butterfly Valve is a compact, cost-effective solution for reliable flow isolation and control. Designed with a concentric disc and soft seat, it ensures tight sealing, smooth operation, and easy installation across various piping systems.

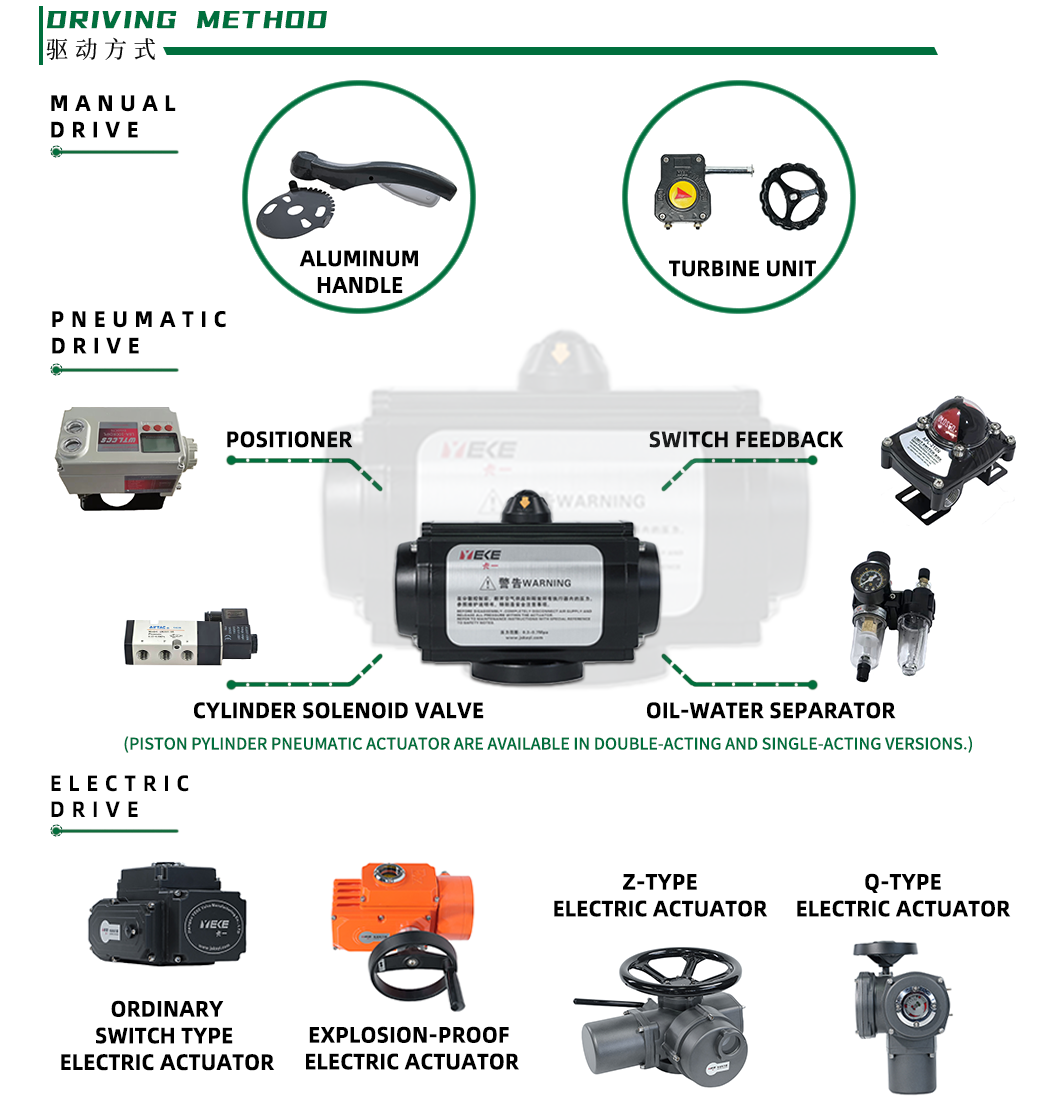

To meet diverse control needs, YEKE provides you with comprehensive drive options: standard handles for manual operation, turbine heads for large-caliber, labor-saving adjustment, as well as precise electric actuators and efficient pneumatic actuators for automated control.

Key Features
Compact Wafer Design:
Lightweight body fits between flanges, saving space and installation cost,Save time and effort.
Resilient Seat Sealing:
EPDM, NBR, or PTFE liners ensure bubble-tight, bi-directional sealing.
Low Operating Torque:
Smooth disc movement enables efficient manual or automated control.
Durable Construction:
Ductile iron or stainless steel body, the surface of the ductile iron valve body is coated with epoxy resin coating, which has excellent adhesion and is not easy to fall off. It is waterproof and beautiful.

Typical Applications
Water treatment and distribution
Wastewater and irrigation
General industrial fluid control

Advantages
Reliable, leak-free sealing
Compact and lightweight structure
Large size range, energy saving and long service life
Cost-effective with low maintenance
Quick installation and operation
Long service life under standard conditions
