Product Introduction

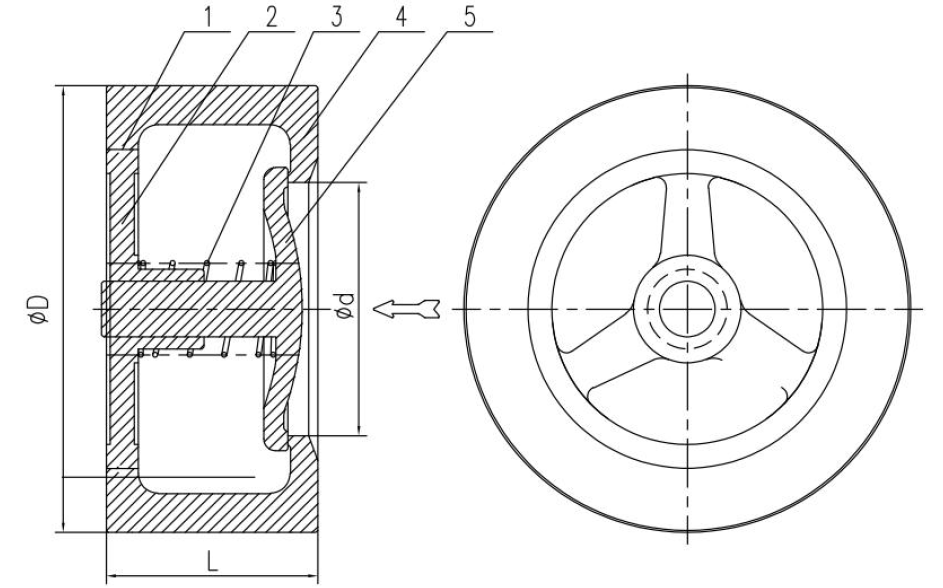

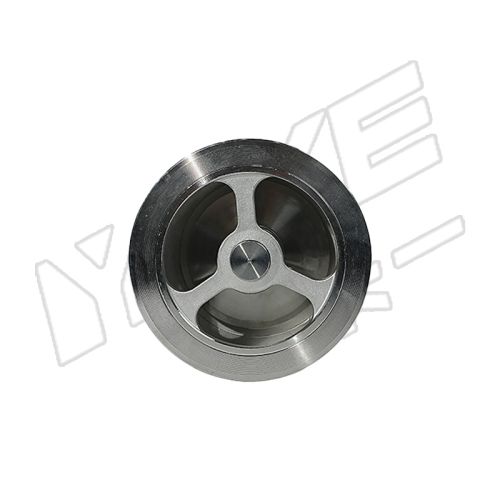

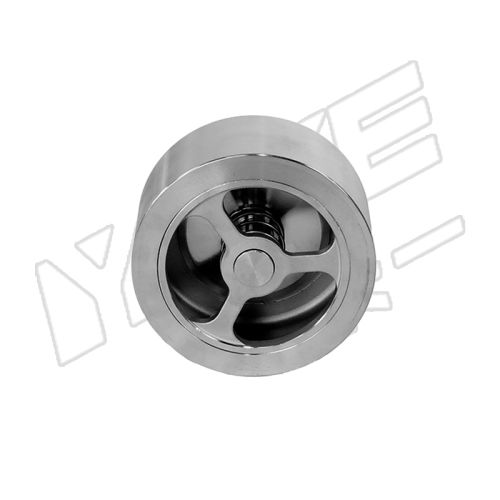

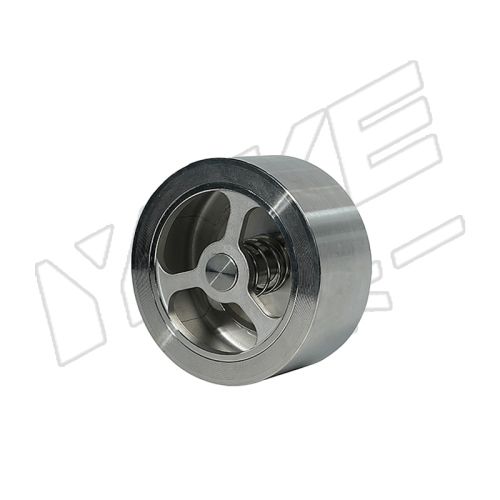

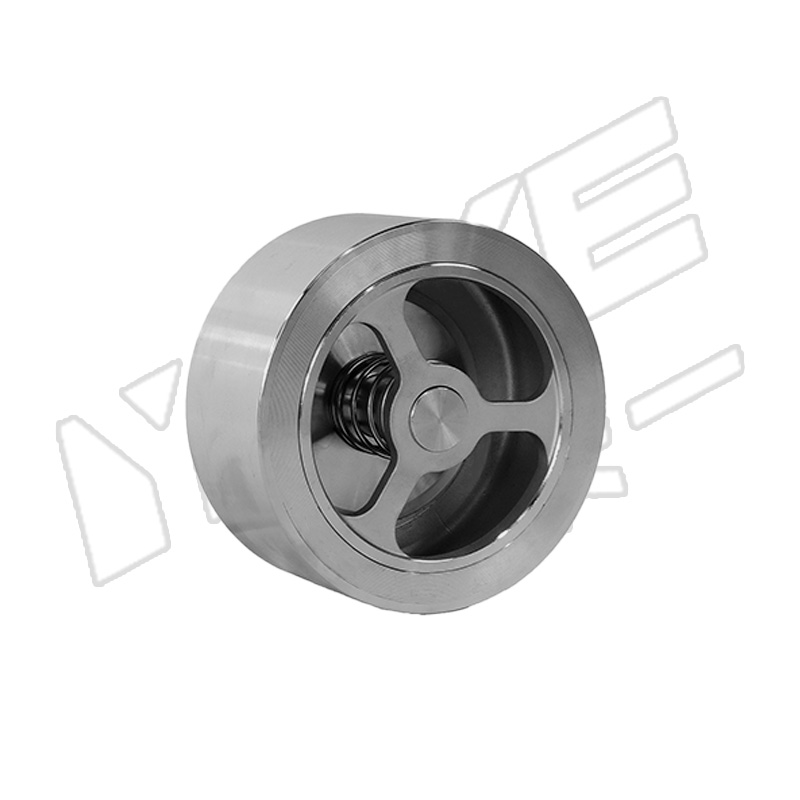

The Lift Check Valve is designed to prevent reverse flow in pipelines by using a vertically moving disc that opens with forward flow and closes automatically when flow reverses. Its simple lift mechanism ensures minimal pressure drop and reliable sealing. Wafer connection, compact s...

The Lift Check Valve is designed to prevent reverse flow in pipelines by using a vertically moving disc that opens with forward flow and closes automatically when flow reverses. Its simple lift mechanism ensures minimal pressure drop and reliable sealing. Wafer connection, compact structure, this valve delivers long-lasting performance and excellent corrosion resistance for water, wastewater, and industrial fluid  systems.

Key Features
One-Way Flow Control:
Vertically moving disc ensures flow in one direction and prevents backflow.
Compact, space-saving design:
The wafer-type mounting system is extremely short, compact, and lightweight, significantly saving installation space.
Minimal Pressure Drop:
Lift mechanism reduces turbulence and maintains efficient flow.
Reliable Sealing:
Precision-machined disc and seat ensure tight shut-off.
Low Maintenance:
Simple vertical operation mechanism ensures minimal upkeep.

Typical Applications
Water treatment and distribution
Wastewater and sewage systems
Industrial fluid transport

Advantages
Short design
Lightweight
Quick valve closing
Flexible installation position
Low flow resistance
