Product Introduction

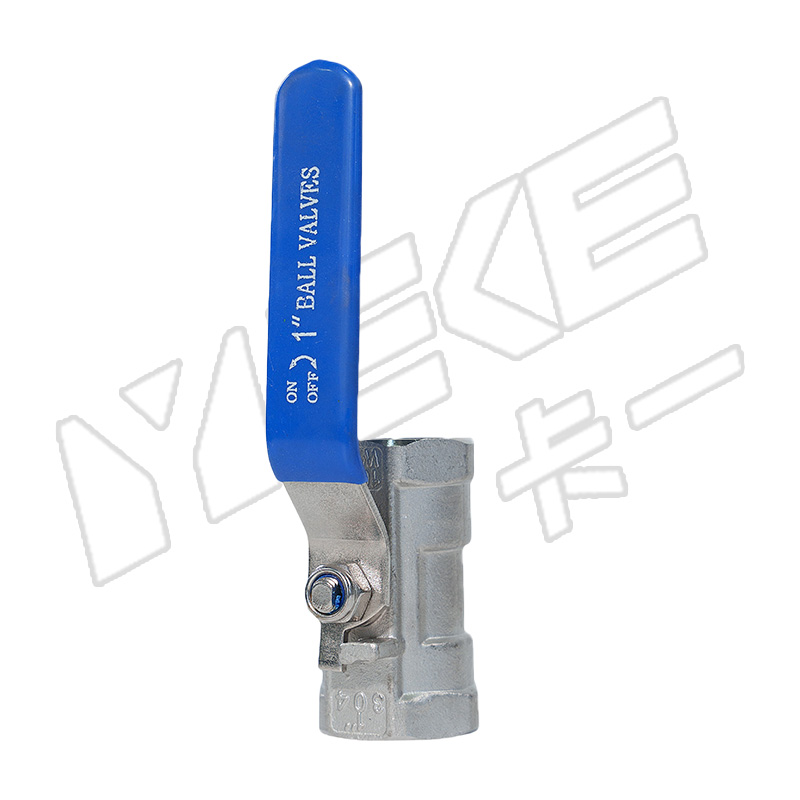

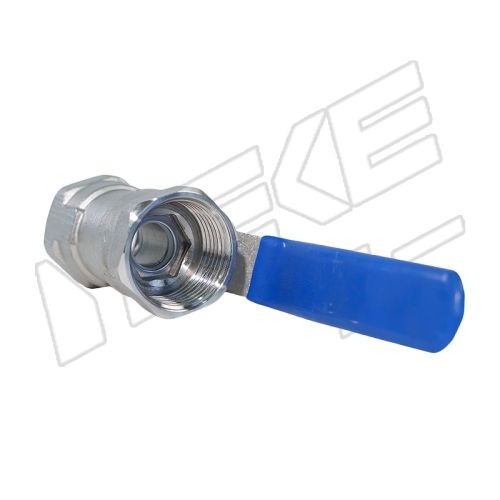

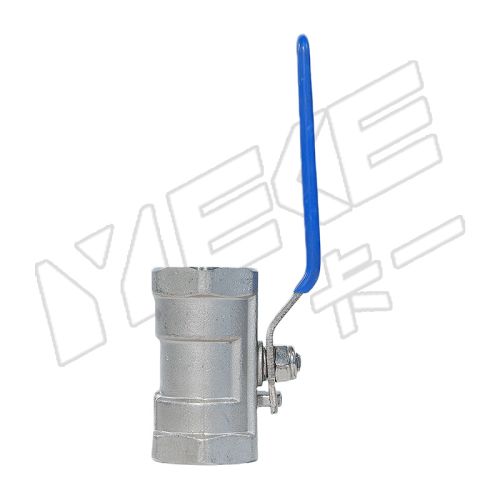

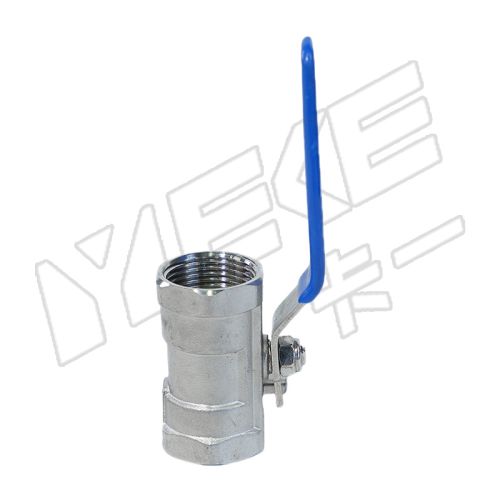

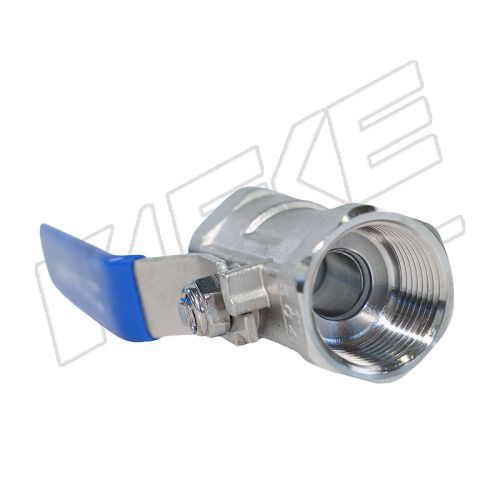

The 1-piece threaded ball valve is designed to provide reliable shutoff and flow control for small to medium-diameter pipelines. The valve body is an integral, integral unit, and opening and closing are achieved by the ball rotating around the valve's centerline. The full-bore desi...

The 1-piece threaded ball valve is designed to provide reliable shutoff and flow control for small to medium-diameter pipelines. The valve body is an integral, integral unit, and opening and closing are achieved by the ball rotating around the valve's centerline. The full-bore design and precision-machined ball and seat ensure minimal pressure drop, smooth operation, and long-term leak-free performance.

To meet diverse control needs, YEKE provides you with comprehensive drive options: standard handles for manual operation, turbine heads for large-caliber, labor-saving adjustment, as well as precise electric actuators and efficient pneumatic actuators for automated control.

Key Features
Precise Flow Control
The valve body is integrally formed, with smooth passage, rapid opening and closing, and extremely low flow resistance.
Compact & Reliable
The most compact structure, no connection gaps, high sealing, suitable for compact spaces.
Durable Construction
The integral forged valve body has high strength, good pressure resistance, and strong resistance to corrosion and erosion.
Easy Installation
Threaded connections are easy to install, but maintenance requires disassembly of the entire pipe.

Typical Applications
Oil and gas transmission and refining
Chemical and petrochemical process systems
Power generation and heating applications
Water treatment and wastewater systems

Advantages
Simple and compact structure
Light weight
Easy maintenance
Smooth flow and fast opening and closing
